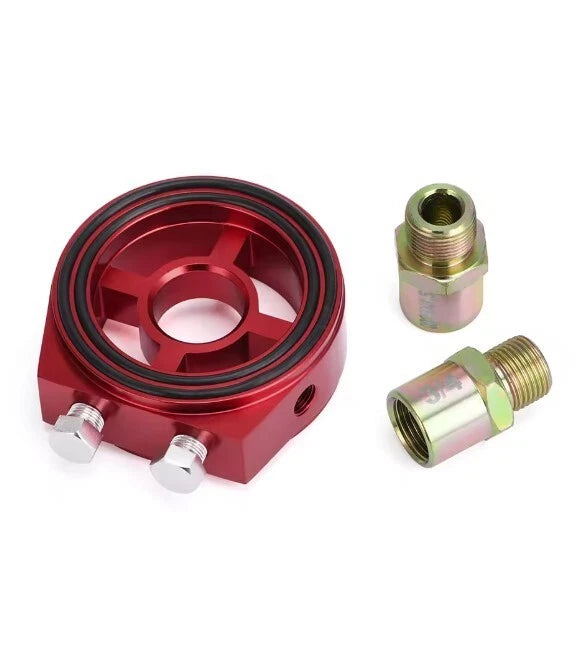

Oil Filter Cooler Sandwich Plate Adapter M20*1.5 & 3/4-16 Universal Oil Adapter

Application:

• Universal


Features and Benefits:

• Oil filter sandwich from Sick speed will allow you to install oil coolers, sensors, or sending units without the need to relocate or drill unnecessary holes in your engine block.

• Double "O" ring installation for a seamless and tight connection.

• Installs in second

• Equipped with Oil temperature & oil pressure sensor insertions.

• Provides direct installation between oil cooler and oil filter without any engine block drilling or relocation.

• Includes 4 adapters to fit a wide variety of cars including 3/4 x 16,M20x1.5.


Dimensions& Material:

• Overall dimension : 3.06" (diameter) x 1.28" (thickness).

• Inlet diameter : 10AN / Outlet diameter : 10AN.

• Bypass port mounting nut dimension : 3/4-16 UNF // M20 x 1.5.

• Thread size of sensor insertions : 1/8 NPT.

• Made from weapons grade aluminum alloy.


PackageIncluded:

• 1 x oil sandwich plate.

• Adapter . (100% Brand New Never Used Or Installed)
