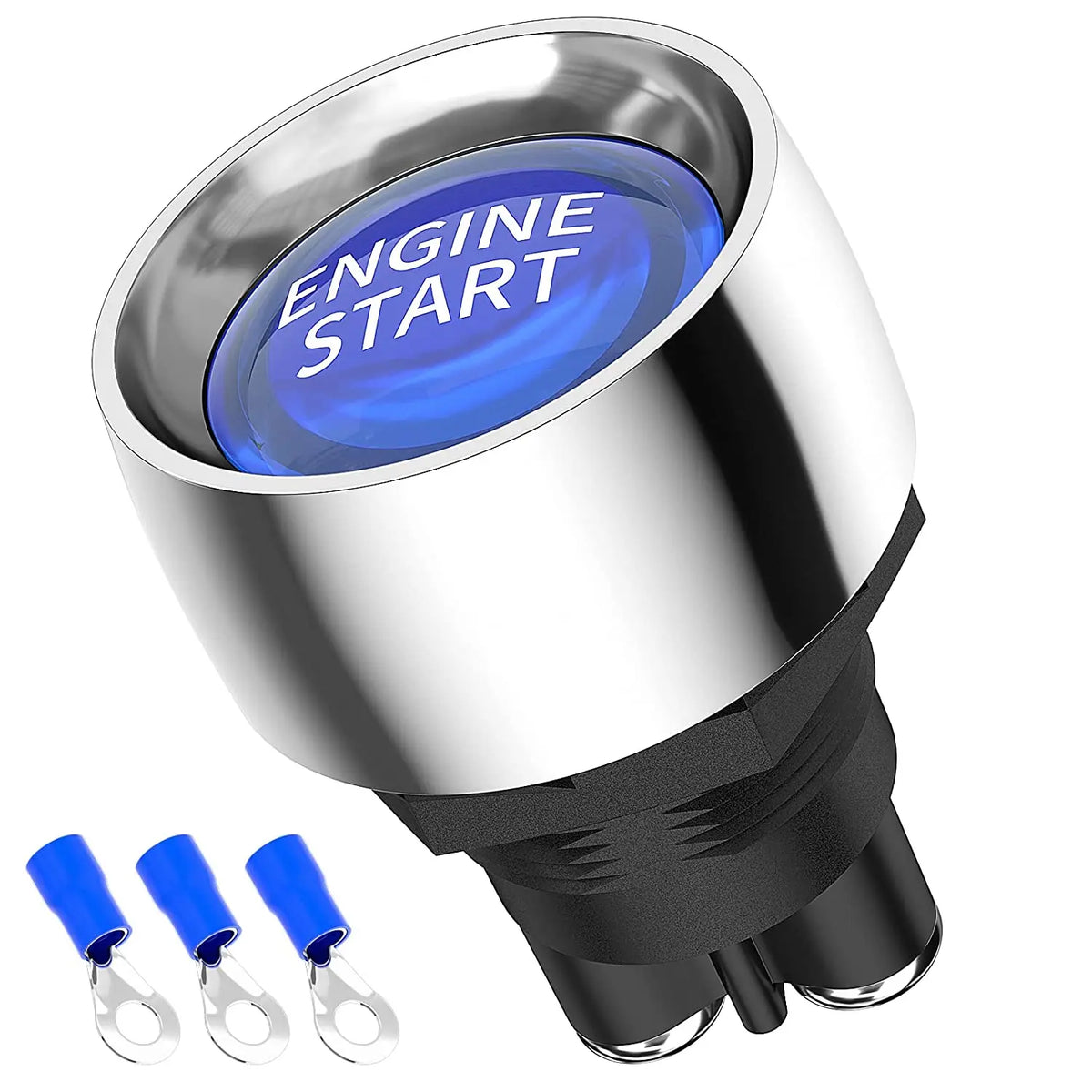

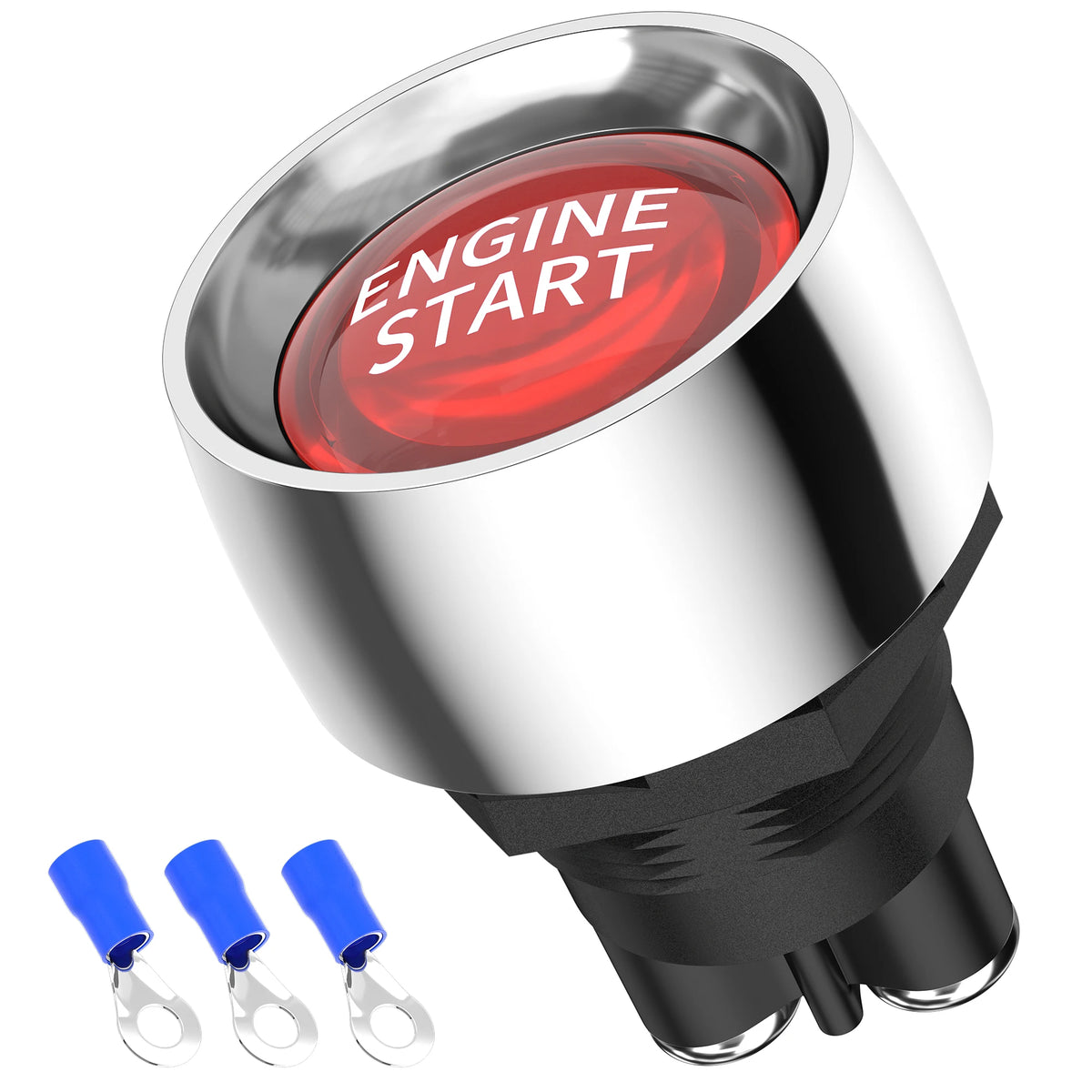

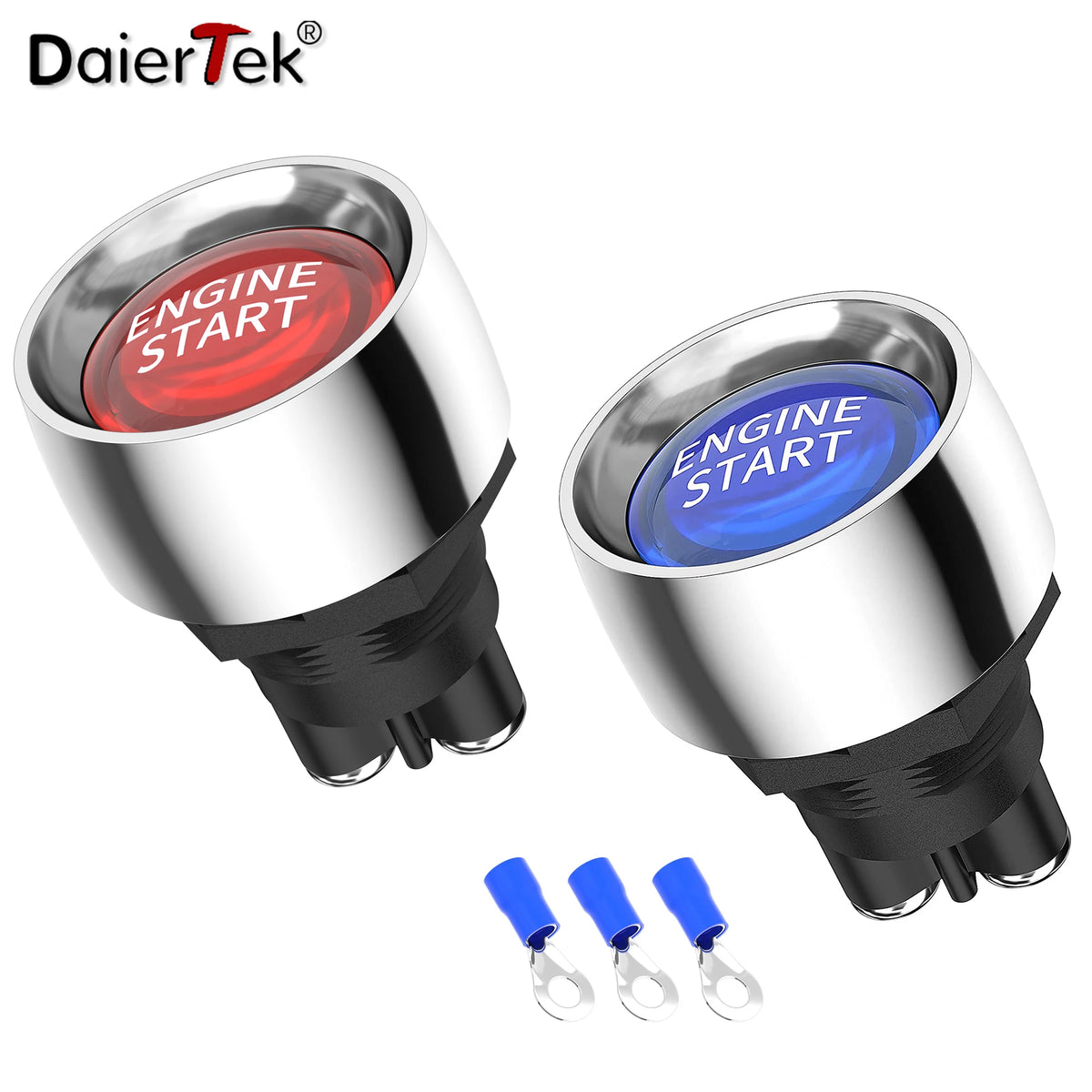

12V 50A 3 Pin Push Button Ignition Starter Switch SPST ON OFF Car RV Marine

12V 50A 3 Pin Push Button Ignition Starter Switch SPST ON OFF Car RV Marine

Regular price $15.99 AUD
Sale price $15.99 AUD
Sale Sold out
Color

12V 50A 3-Pin Push Button Ignition Starter Switch

Replace or upgrade your vehicle's ignition control with this 3-pin push button starter switch. Designed for 12V electrical systems with a 50A rating, it features a compact momentary push-button design and is suitable for cars, marine applications, RVs and other compatible vehicles.

Features

  • 12V electrical system compatibility
  • 50A rated current capacity
  • 3-pin SPST switch design
  • Momentary push-button operation
  • ON/OFF control function
  • Keyless push-button starter style
  • Compact design for custom dashboard installation
  • Suitable for automotive, marine and RV applications

Applications

  • Car engine start and ignition systems
  • Marine and boat electrical applications
  • RV and camper electrical systems
  • Custom vehicle dashboards
  • Replacement or auxiliary starter switches

Package Includes

  • 1 x 3-Pin Push Button Ignition Starter Switch

Note: Please verify the switch dimensions, pin configuration, wiring, voltage and current requirements before installation. Do not exceed the rated 50A capacity. Professional installation is recommended.







Packing List:

  • Package including:

  • 1 x Push Start Button

  • 3 x Ring terminals

Car Engine Start Ignition Switch 12V 50A

Application

This engine start ignition switch is designed to connect and disconnect DC 12V 50A circuit at wil, and is generally applicable to all vehicles, racing vehicles, truck ships, RV

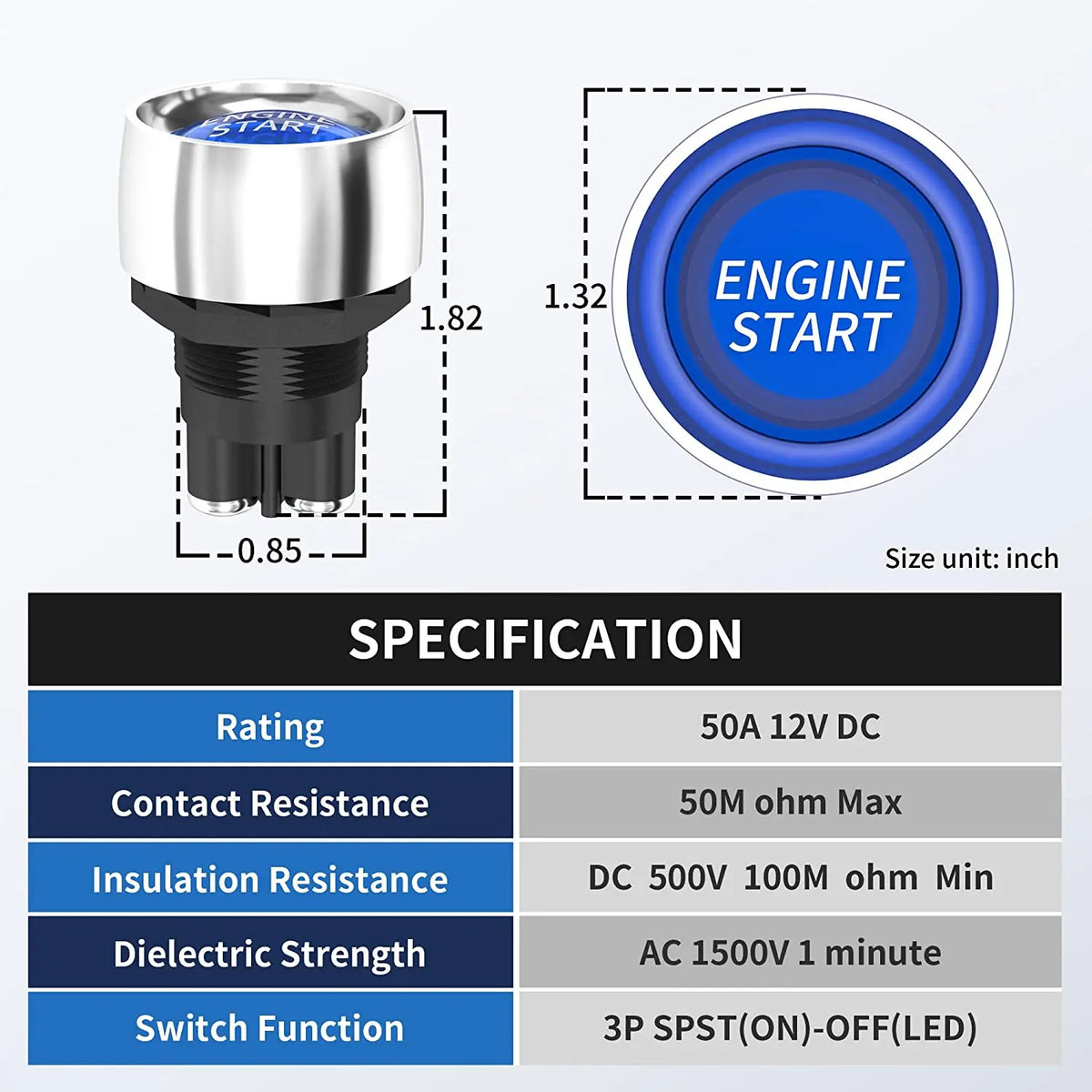

  • Frame:Nylon 66 (94V-2),Black

  • Cover:ABS(94HB)

  • Terminals:Copper Alloy

  • Light Color: Blue

  • Size: 31 x 44mm / 1.2" x 1.7"

  • Life: 10,000 cycles circuit

  • LED:∅5 White diffuse

  • Size: 33x 46mm/ 1.3x 1.8in.








Voltage

12V-24V

Continuous Current

50A Max

Installation Diameter

22mm/0.87"


Operation Temperature

                            -25℃ ~+85℃

Insulation Resistance

                           DC 500V 100M ohm Min

Contact Resistance

                           50m ohm Max.
